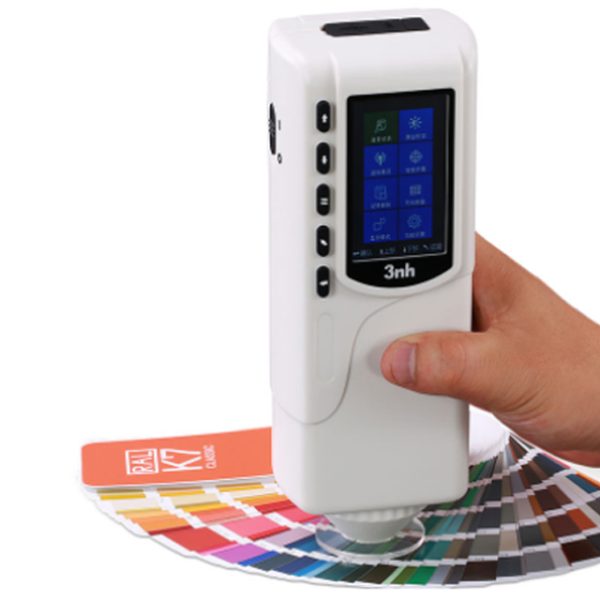

NR60CP Colorimeter

NR20XE Precision Colorimeter NR20XE Precision Colorimeter
NR110 Precision Colorimeter NR110 Precision Colorimeter

Kategorie:

Beskrywing

NR60CP Colorimeter

Gebruik

NR60CP cost-effective colorimeter has the advantages of high accuracy, powerful function and precise measurement which are warmly welcomed by customers.



NR60CP Colorimeter

Produk Kenmerke

  1. Switchable 8mm and 4mm measuring apertures, easy to measure concave surface.
  2. Higher measurement stability and accuracy, Delta E ab<0.03.
  3. More color spaces, various color indexes, extensive applicability.
  4. Double locating: illuminating locating and cross locating
  5. Configured with high-capacity rechargeable Li-ion battery
  6. Built-in white plate parameters and physical white calibration board, maklik om te bedryf;
  7. New integrating sphere optical path design, more stable measurement;
  8. Measurement data can pass national metrology authentication.



Application Industry

NR60CP spectrophotometer is widely used in plastic, elektronies, verf, ink, tekstiel, garment, druk en kleur, kos, medical, cosmetic, industries, scientific research institutes, schools and laboratories. It can precisely measure kinds of color indexes in various color spaces and easy to use with powerful functions. The instrument is equipped with high-end color management software which can connect to PC to achieve more extension functions.



NR60CP Colorimeter

Spesifikasie

Model NR60CP
Illuminating/Viewing Geometry 8° / d; CI E No. 15,GB/ T 3978
Ligbron LED sources
Sensor Silicon photodiode array
Meet diafragma Φ8mm large area end-face; Φ4mm small area concave-convex end-face
Color Space CI E L AB,XYZ,LCh,CI E RGB,CI E LUV
Other Chromaticity Data WI ( E313,CI E, AATCC,Hunt er ),DOEN ( D1925, 313),Kleurvastheid, Staining Fastness, J PC79,BFD( 1. 5: 1),FMCI I
Observer CI E 10°
Illuminant D65,A,C,D50,F2,F6,F7,F8,F10,F11,F12
Display Data Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset,
Measurement Time 0. 4s
Herhaalbaarheid ΔE* ab 0. 03(Average of 30 measurement of standard white plate within 5s)
Errors between each instrument within Delta E*ab 0.2
Dimensie (L*W*H)205*67*80mm
Gewig 500g
Battery rechargeable lithium-ion battery 3. 7V @ 3200mAh
Lamp Life 5 jare, meer as 1.6 million measurements
Display Screen TFT 2.8 duim(16: 9)
Koppelvlak USB/RS-232
Data Memory 100 Standaarde, 20000 Samples
Operating Temperature 0~40℃(32~104°F)
Storage temperature -20~50℃(-4~122°F)
Optional Accessory miniature thermal printer, powder test box
