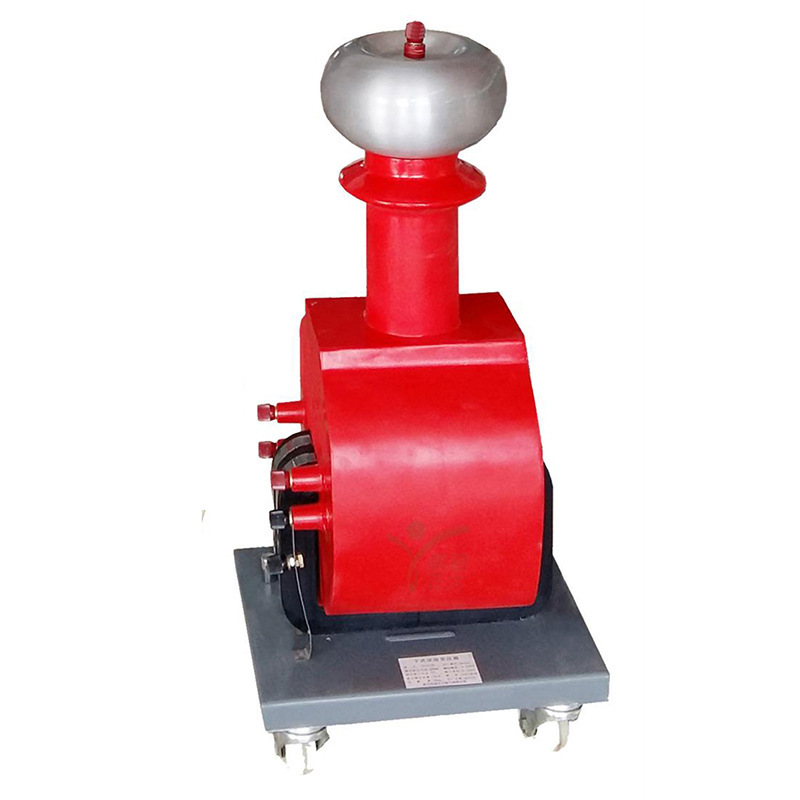

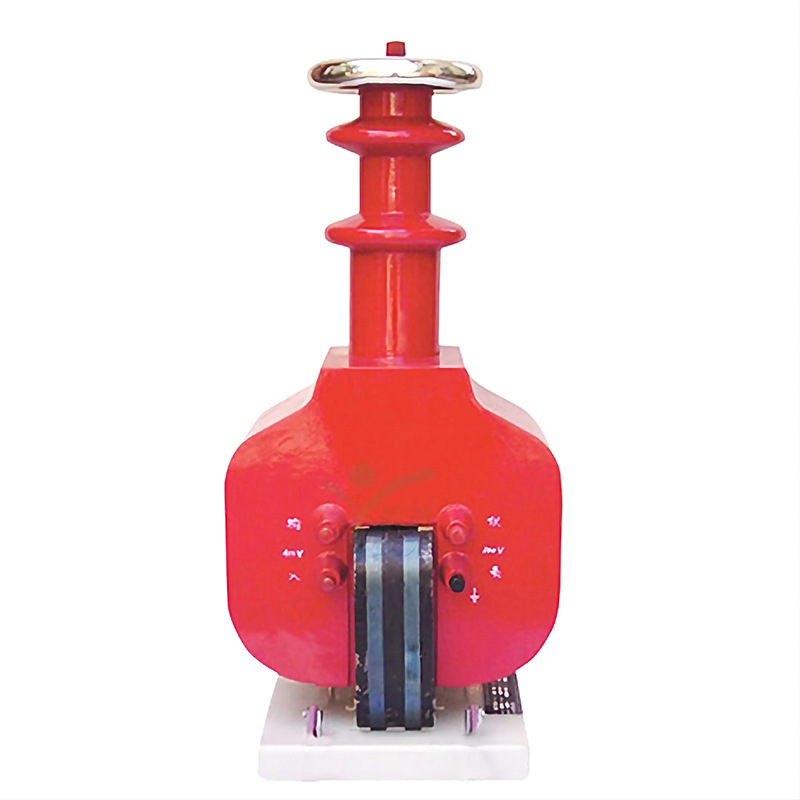

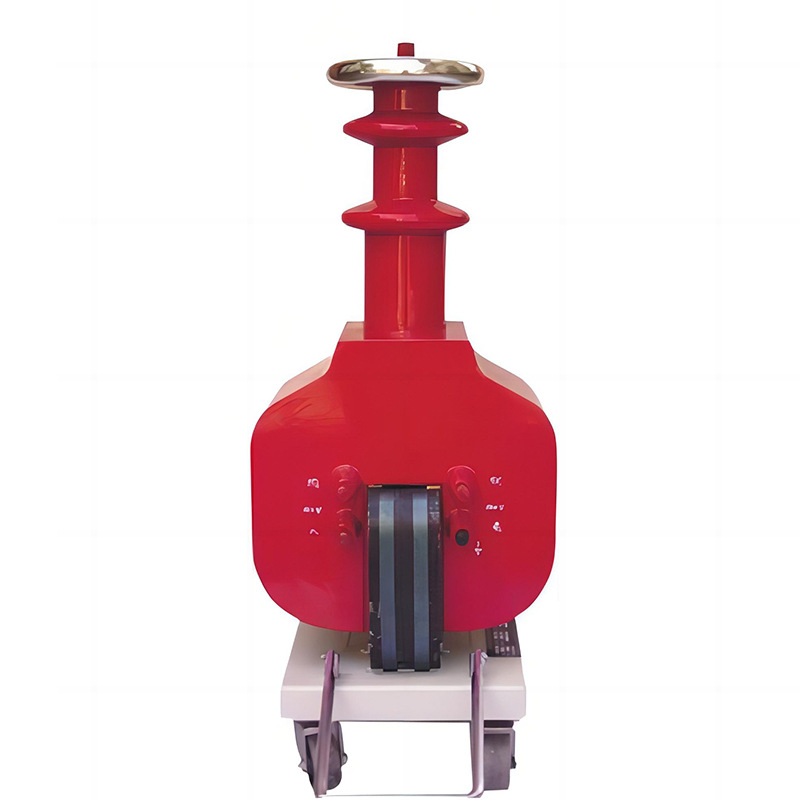

KDZD Voltage Booster

KGAS-500 DC Circuit Breaker KGAS-500 DC Circuit Breaker
KGHL-100A Circuit Resistance Tester KGHL-100A Circuit Resistance Tester

Kategorie:

Beskrywing

Voltage Booster

Produk eienskappe

1, the dry test transformer small size, ligte gewig, compact structure, no oil leakage, maintenance-free

2, simple and intuitive wiring, maklik om te gebruik

3, good insulation reliability, beautiful appearance

4, with overvoltage protection function

Voltage Booster

Impedance voltage ≤12%
Output voltage waveform Sinusoidal wave
Surface temperature rise <55℃
No-load current <4%
Allows continuous running time 60min
Main product specifications
Kapasiteit (kVA) Insetspanning Output voltage (kV) Output current (mA) Overall dimensions (mm) Gewig (kg)
(V)
1.5     30 260×240×450 12
3     60 330×280×510 25
5     100 330×280×510 37
10 200 50 200 360×350×850 32
15 of   300 360×350×950 72
20 400   400 360×350×1000 78
25     500 430×450×1100 82
30     600 430×450×1200 120
5     50 360×350×1000 72
10     100 360×350×1100 75
15   100 150 360×350×1200 78
20     200 430×450×1200 82
25 200   250 430×450×1200 110
30 of   300 430×450×1200 120
15 400   125 360×350×1100 85
20   120 160 430×450×1200 121
25     200 430×450×1200 115
30     250 430×450×1200 130
