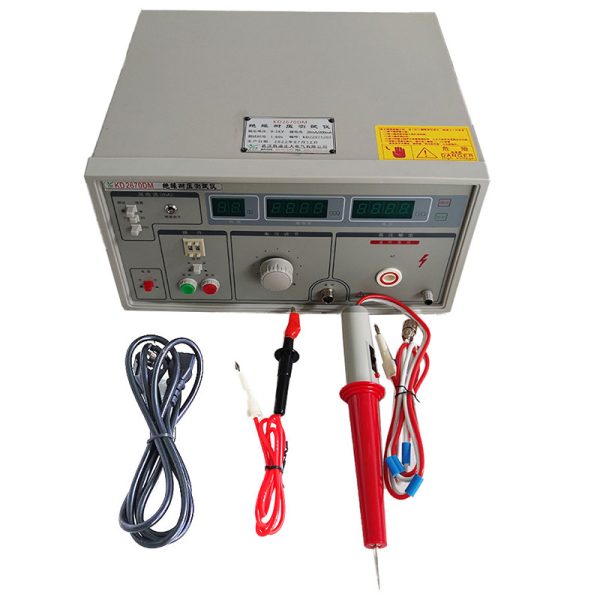

KD2670DM AC Weerstaan spanningstoetser
- Beskrywing
- Ondersoek
Beskrywing
withstand voltage tester
Prestasie eienskappe
■ High voltage, low current, hoë akkuraatheid.
■ Leakage current, test time, continuous setting, strong adaptability.
■ At the same time display the actual measured value (tyd, Spanning, stroom), unqualified sound and light alarm.
■ Manual and remote test.
■ High voltage breakdown protection.
■ DC output can measure capacitor voltage, Lekstroom, high voltage silicon stack, transistor reverse voltage, reverse current, a multi-purpose machine.
withstand voltage tester
|
Modelnommer |
Output voltage |
Leakage current range |
akkuraatheid |
Test time |
|
KD2670A |
0～5KV(Ac) |
0～2/20mA(Ac) |
±（5%+3counts) |
1～99s |
|
KD2672 |
0～5KV(AC/DC) |
0～2/20mA(AC/DC) |
||
|
KD2672C |
0～5KV(AC/DC) |
0～2/20/100mA(Ac) |
||
|
KD2672D |
0～5KV(Ac) |
0～200mA(Ac) |
||
|
KD2673C |
0～3KV(DC) |
0～2/20/100mA(DC) |
||
|
KD2671B |
0～10KV(AC/DC) |
0～2/20/50mA(Ac) |
||
|
KD2674 |
0～15KV(AC/DC) |
0～2/20mA(AC/DC) |
||
|
KD2674A |
0～20KV(AC/DC) |
0～2/10mA(AC/DC) |
||
|
KD2674B |
0～30KV(Ac) |
0～2/10mA(Ac) |
±（5%+5counts) |
|
|
KD2674C |
0～30KV(AC/DC) |
0～2/10mA(AC/DC) |
||
|
KD2674D |
0～50KV(Ac) |
0～2/10mA(Ac) |
||
|
KD2674E |
0～50KV(AC/DC) |
0～2/10mA(AC/DC) |
|
Modelnommer |
kapasiteit |
dimension |
gewig |
attachments |
Temperature/humidity |
|
KD2670A |
100VA |
350×135×280 |
8kg |
KD26001 |
0оC～40оC |
|
KD2672 |
100VA |
350×135×280 |
10kg |
||
|
KD2672C |
500VA |
375×195×280 |
12kg |
||
|
KD2672D |
1000VA |
435×230×425 |
20kg |
||
|
KD2673C |
300VA |
375×195×280 |
12kg |
||
|
KD2671B |
500VA |
375×195×280 |
20kg |
KD26002 |
|
|
KD2674 |
150VA |
430×225×430 |
30kg |
||
|
KD2674A |
200VA |
430×225×430 |
30kg |
||
|
KD2674B |
600VA |
430×225×430 |
50kg |
Accessories can be customized according to customer requirements |
|
|
KD2674C |
600VA |
430×225×430 |
50kg |
||
|
KD2674D |
1000VA |
430×225×430 |
50kg |
||
|
KD2674E |
1000VA |
430×225×430 |
50kg
|
