Cable safety pricker
KD-215A cable safety pricking device is a supporting product of KD-214A type cable identification device. After identifying multiple cables, it adopts non-contact control (remote control, automatic timing by wire control) mode for the safety remote control of a certain cable before sawn, which completely solves the personal safety problem of artificial pricking cables.

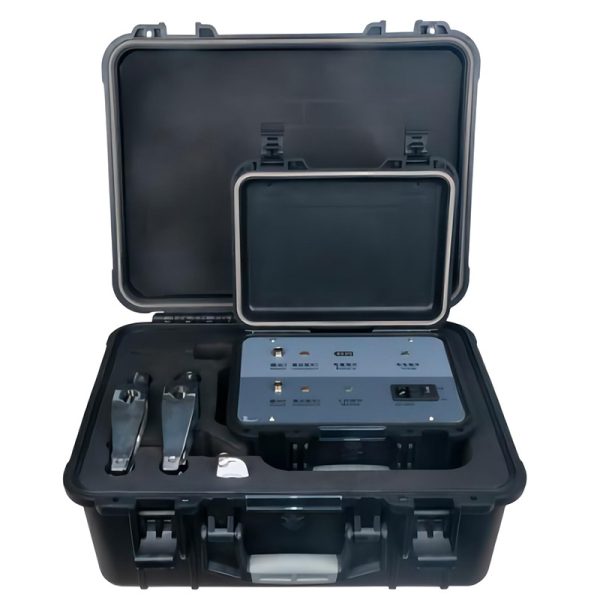

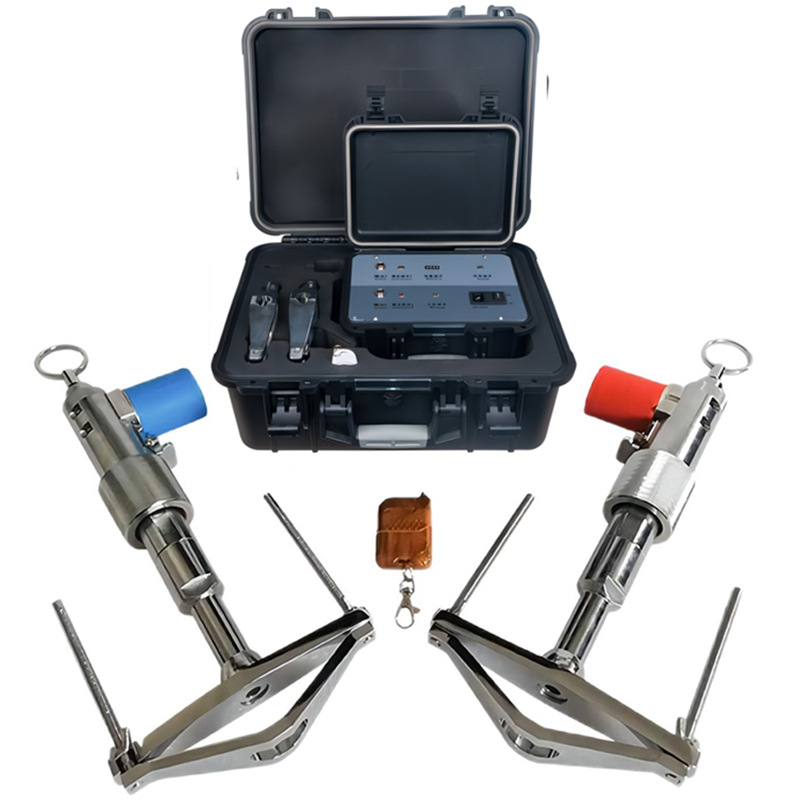

KD-215A cable safety pricking device is divided into two parts of the shooter and the controller: the front end and the back end of the shooter are connected by nut 3, and are firmly fixed with the cable through the U-shaped clamp. Its structure is reasonable and light, easy to install and fix, and can be installed from multiple angles. The controller uses digital control and electronic detection circuit, integrates human voice and liquid crystal display control, and realizes man-machine dialogue. The panel design of the machine is clear and eye-catching, and the operation is simple and convenient. The cable safety pricker adopts two modes of remote control and wire control timing. People do not contact the device directly when working to ensure personal safety. Using battery power supply, the pricker is completely isolated from the power system to ensure the safety of power supply.
Functional characteristics and technical indicators
By the controller, remote control, puncture gun body composition, is my company’s independent carefully developed products, 100 hair 100.
Cable safety pricker
| A single gun can only produce one short circuit point on the cable at a time, and two guns can produce two short circuit points on the cable at a time. | |
| Wireless remote control, remote control distance of more than 10 meter, can be separated from the wall remote control, safety performance reliability is higher than infrared. The control line is 5 meters long. | |
| Ac, DC dual use, built-in 10Ah lithium battery, long charging time, continuous work for more than 10 ure | |
| Clamping diameter width | 30-150mm. |
| Klein grootte, ligte gewig, very suitable for field use | |
| Werkende kragtoevoer | AC 220V±10% 50Hz/DC 12V 3A |
| Beheerder | 270×230×120mm 2.5kg |
| Complete set | 470×380×210mm 15.5kg (double gun 215AS) |
Pin specification table:
| Cable diameter mm | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 |
| Nail specification | PS27C8 | PS37C8 | PS47C8 | PS57C8 | ||||
Bullet power table:
| spesifikasie | black
|
blue | yellow | red | Recommended use | 35kV and below | Above 35kV |
| might | minimum | small | In the | big | In S1 yellow | In S1 red |
