Beskrywing

Temperature Tester

Kort inleiding

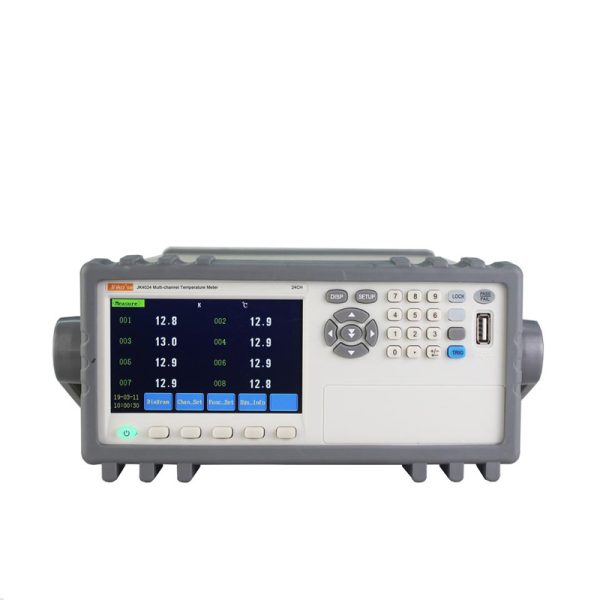

The newly upgraded JK4000 series is a multi-channel temperature recorder controlled by ARM microprocessor. It adopts 4.3 inch color display and multi-channel parallel test. Multi-channel temperature recorder can collect, alarm and transmit multi-channel temperature simultaneously. The JK4000 series sampled the most advanced testing principles to make the temperature test resolution to 0.1 degrees.It has wide adaptability and supports K/N/E/J/T/R/S/B thermocouple. The test range is from -200℃~1800℃.

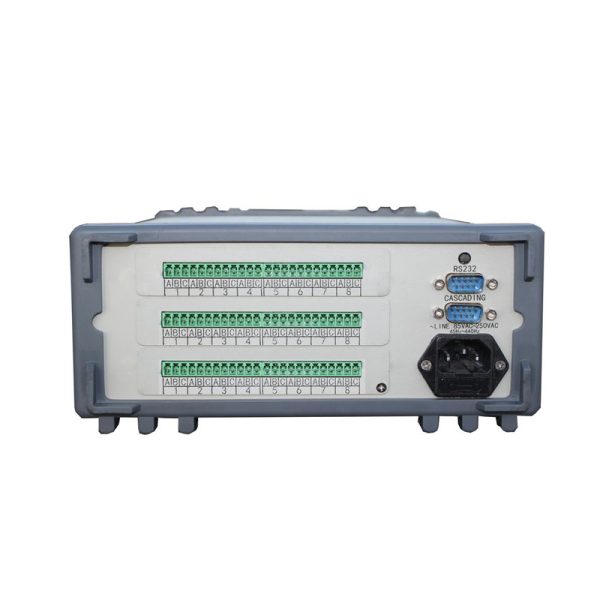

The multi-channel temperature recorder is equipped with RS232 interface. It can directly upload data to PC, and also has USB interface. When it is not convenient to connect to PC, it can save measured data directly to U disk, and then transfer data to PC when needed.Andcan accept module combination. No matter you need only a few simple data recording channels, you still need hundreds of thousands of performance channels, and provide free communication. Data acquisition, analysis and printing can be easily realized through PC software. With a strong anti vibration shell, it can work in a harsh environment. All isolated digital and analog signals, JK4000 with U disk interface, support real-time data storage. At the same time test and display instrument curve number can be arbitrarily extended, permanent upgrade.



Temperature Tester

Tegniese parameters:

Model JK4000 multichannel data recorder
Input type Thermocouples: J/K/T/E/S/N/B type PT100 PT1000 (need to be customized)
Measuring range Meetbereik:E \J \K \N \R \S \T \pt100 type

Measurement basic accuracy:-200~1800℃:±(read value×0.5%+1)℃, -100~0℃:±(read value×0.5%+2)℃;The test range is different because of the diversity number
Channel number 8 channel ,16 channel, 24 channel, 32 channel, 40 channel ,48 channel,64 channel(External extension module JK408)
Vertoon 4.3 inch TFT color screen
Vertoon resolusie 0.1℃
U disk storage yes
withstand voltage Between the input circuit and the internal loop 300VAC/1 minutes

Between the analog input channels: :100VAC/1minutes
scanning speed 100me
Internal storage yes
curve tracing yes
communication interface RS232 or RS485
software kit 2015 version of V1.3 software
Single screen display 32channel
Temperature correction yes
Other functions Clock function calendar function
Terminal type M3 screw type
Permissible environmental conditions 1,Kragtoevoer: AC 220V±10%, 50Hz ± 2%;

2,Werksomgewing: working temperature:-20-70℃,Relatiewe humiditeit:20%-90%;
Grootte (W×H×D) Upper frame size(mm):215(w)*88(H)*335(D)

Shape size (mm) : 235(w)*105(H) *360(D)

Gewig :about 3.6kg
