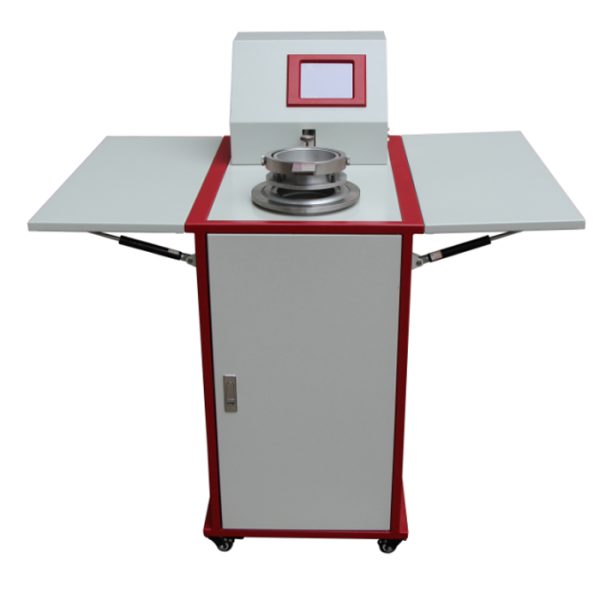

GA-4004 Fabric Air Permeability Tester
- Beskrywing
- Ondersoek
Beskrywing
Fabric Air Permeability Tester
Standaarde
GB/T 5453、GB/T 13764、ISO 9237、ISO 7231、ISO 5636、BS 5636、ASTM D737
VAN 53887、NET L1096
Fabric Air Permeability Tester
Gebruike
For a variety of textile fabrics, insluitend industriële stowwe, non-woven fabrics and other textile
products and other breathable material permeability measurement.
Fabric Air Permeability Tester
Instrument characteristics
1, imported high-precision pressure and differential pressure sensor to ensure data accuracy.
2, microcomputer processing, test results displayed directly, without artificial look-up table calculations.
3, built-in 7 kinds of test units mm / s, m3/m2.min, cm3/cm2.s, m3/m2.h, cfm, L/dm2.min, L/m2.s test unit can switch according to demand.
4, touch screen control, two-way selection menu operation in English, available on-line operation.
Fabric Air Permeability Tester
Spesifikasies
1, the sample pressure range: 1 ~ 4000Pa
2, the air permeability can be measured: 0.1 ~ 12000mm / s
3, the measurement error: ≤ ± 2%
4, can be measured fabric thickness: ≤ 12mm
5, the test area: 5cm2; 20cm2; 50cm2; 100cm2
Ф50mm (≈ 19.6cm2) Ф70mm (≈ 38.5cm2)
6, the nozzle parameters:
| Kode | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| Diameter
φ（mm） |
0.8 | 1.2 | 2 | 3 | 4 | 6 | 8 | 10 | 12 | 16 | 20 |
7, Krag: AC220V 50Hz 2KW
8 Shape: 1070 × 670 × 1080mm
9, Gewig: 75Kg

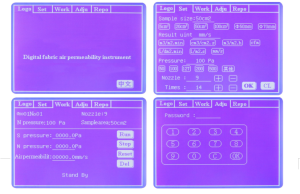

Operation Interface
