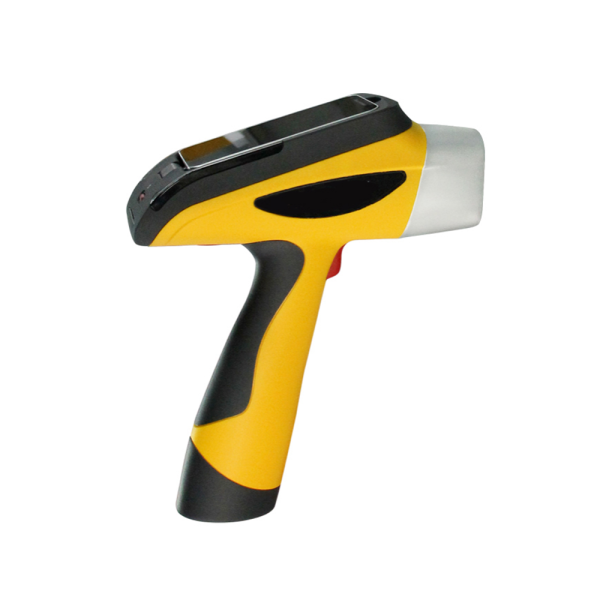

GA-205 Plus XRF metaallegering ontleder

Beskrywing

GA-205 Plus XRF metaallegering ontleder

1.Produk bekendstelling:

Rapid and accurate on-site analysis of alloy kinds and elements

Based on ten-year research and development experiences of portable instruments,handheld XRF adopt photoelectron, microelectronics, semiconductor, computer and many other technology and develop the new generation of handheld XRF with Independent Property Rights.GA-205 plus handheld alloy analyzer is the first to use large-screen, high-resolution LCD and the new digital signal processor. The minimum detection limits make its performance as great as the desktop. With small size and light weight, it is portable for testing and suitable for analyzing different kinds of alloy.



2.Application Fields

• Precious metal alloy
• Iron and steel smelting
• Waste metal recycling
• Machinery manufacturing and processing
• Boiler pressure vessel
• Aerospace industry
• Shipbuilding
• …….



GA-205 plus can make accurate and nondestructive detection on a variety of precious metal alloys, low alloy steel, stainless steel, tool steel, chrome / molybdenum steel, nickel alloys, cobalt alloys, nickel / cobalt-resistant alloys, titanium, copper alloy, bronze, zinc alloy, tungsten alloy, etc.Knowing the materials composition and alloy kind in one second. Rapid detection on aluminum and magnesium alloy grades is possible and it allows to make reliable identification and confirmation of the material (PMl) and precisely control the materials quality.

Reliable identification of materials

In the process of alloy materials production and machinery manufacturing and processing, elements detection can’t work without the identification of materials. GA-205 plus professional and nondestructive detection can effectively prevent the mix of raw material and avoid unnecessary loss.

Quality control in industrial production

GA-205 plus professional and nondestructive detection can be used for quality control and management in the manufacturing process of steel smelting, boiler industry and other high-temperature and high-pressure industries to ensure the materials quality; identification of alloy composition in shipbuilding, aerospace and other high-tech industries in order to ensure product quality and safety; identification on the quality of the spare parts in electric power plants and other industries related to people’s livelihood to guarantee the equipment safety.

Waste metals recycling and reuse

In waste metal recycling and reuse industry,GA-205 plus can make on-site detection and rapid classification of scrap metals; recycle overstocked steel in the warehouse: classify metals in salvage station; recycle the turning scraps and cuttings. lt’s a powerful tool to make metal and steel identification in waste metals recycling industry



3.Ses Advantages

Makliker bedryf

• Ligte gewig，klein grootte,ergonomiese handvatsel ontwerp,toegerus met 'n spesiale instrumentkas, wat makliker is om te begryp en geriefliker is om in die veld te gebruik.
• 5 duim hoë-definisie skerm met 360 graad rotasie, veelvuldige punte werk, kan duidelik vertoon by enige ligte.
• Geïntegreerde ontwerp van Seël tipe, met waterdigte en stofdigte funksie, kan deurlopend in moeilike omgewings gebruik word
• Geen monstervoorbereiding nodig nie,kan die oppervlak van goedere wat getoets moet word, direk meet en ontleed. Die instrument kan 'n vinnige meting doen deur sy handheld voordeel en die monsters akkuraat toets vir 'n lang tyd deur sy toetsblok.

Beter prestasie

• Vinnige nie-vernietigende opsporing en vinnige meting deur te mik，rapporteer resultate binne een sekonde. Die werkverrigting is vergelykbaar met die werkverrigting van die bankblad en die opsporingresultaat is vinnig en akkuraat.
• Gelyktydige opsporing van Ti，V，Kr，Mn，Fe，Co，In，Cu,Zn，Ga，Ge，Zr，NB，Ma，Ru， Rh，Pd，Ag，In，Sn，Sb,Hf，Gesig，W，Re，Pt，Au，Pb，Bi，Mg，Al，En，P，S，en dit kan elemente byvoeg wat aangepas is vir die behoeftes van die kliënt.
• Instrument kan sonder helium hardloop deur die ultra naby optiese padontwerp, en kan die ligte elemente vanaf die begin van Mg opspoor wat ten volle aan die behoeftes van spesifieke gebruikers voldoen.

Sterker battery

• Groot litiumbattery by 27000mAh kan as 'n geselekteerde konfigurasie wees: die batteryduur werktyd is tot drie dae en dit is toegerus met kommunikeerder en motorlaaier om kragtoevoer te verseker.
• 'n Ingeboude geheue battery kan voortgaan om die batterykrag te vervang

Hoër konfigurasie

• Vier kerndele wat Miniatuur X-straalbuis is, Fast-SDD detektor (die wêreld se beste detektor)，digitale seinverwerker en mikro multi-kanaal intelligente analise module, kan die akkuraatheid so goed soos bank-top s'n bereik.
• Groot databerging is deur ultrahoë frekwensie geheue en massaberging Ons nuwe onafhanklike navorsing en ontwikkeling Digitale multikanaal tegnologie verseker effektiewe mynbou spektrale tellings per sekonde tot 500K cps.
• Kollimasie filter stelsel, sy kombinasie kan tot die limiet van 12 groepe bereik, om aan die toetsvereistes van verskillende kliënte te voldoen.
• 'n Ingeboude 500W pixels hoë definisie kamera, kan die monster se toetsposisie te eniger tyd waarneem wat die meting meer akkuraat maak.

Veiliger beskerming

• Intelligent- driekleur- vroeë -waarskuwingstelsel: 360 grade sonder dooie hoek vertoon deur LED drie-kleur lamp gelei ontwerp. Instrument status vertel deur verskillende kleure,Groen lig beteken krag aan, rooi spoel beteken toets, en geel spoel beteken fout van toerusting.
• Drievoudige veiligheidsbeskermingsfunksie:

a: Outomatiese induksie, instrument werk nie sonder monster nie.geen lekstraling nie.

b: Verdik – voorkoming – toets – muur kan die verstrooiing effektief voorkom.

c: Veiligheid – beskerming – bedekking kan voorkom dat die omliggende ligmatriks verstrooi word.

• Sekuriteit- koppeling- sluittoestel beskerm jou sekuriteit: dit kan die finale kontrolepunt bewaak as die sagteware nie die afskakeling van die instrument kan beheer nie.

Meer intelligente sagteware

• GA-205 plusalloy analyzer is equipped with professional application software, spesifiek vir legeringsbedryf; die kenmerk is intelligent, hoë sensitiwiteit, kort toetstyd, en maklike werking.
• Splinternuwe kennisware is een sleutelbewerking met dubbelmodus-ontwerp (gebruikersmodus en deskundige modus). Gebruikersmodus gebruik om kategorieë van monsters te herken deur een sleutelbewerking: Kundige modus word gebruik vir die verhoging van die elemente en die verhoging van die spesifieke in-diepte analise van die operasie kurwe.
• Interne intensiteit regstelling metode kan afwyking wat veroorsaak word deur ongelyke monster van verskillende meetkunde regstel, digthede en

4.Tegniese parameters

Analitiese metode	Energy dispersive X ray fluorescence analytical Method
Elements Measuring Range	Atoomgetal vanaf 12 aan 92 [elemente van magnesium(Mg) na uraan (U)] gemeet kan word
Gelyktydige detektorelemente	Simultaneous analysis 40 elemente
Microcomputer system	Pasgemaakte stelsel; SVE: 1G ; stelsel geheue: 1G ; uitgebreide gestoor maksimum ondersteuning 32G : standaard 4G vir massaberging data
Die inhoudreeks	PPM – 99.99%
Die opsporingstyd	1 – 60 sekondes (a second report results)
'n Ingeboude stelsel	GPS,WIFI Bluetooth
Kragtoevoer	Herlaaibare litiumbattery, standaard is 9000mAh, volhoubare werk tot 12 ure; optional is 27000mAh superbattery with wide voltage 110V – 220V universal adapter for recharging power supply
Opsporingsdoelwit	Solied, vloeistof, poeier
Detektor	SDD detector of Fast-SDD detector (opsioneel)
Detektor resolusie	Minimum can reach 128ev
Die bron van opwinding	50KV/200uA- silver target end window integrated miniature ray tube and high voltage power supply
Collimator and filter	Collimator diameters are 4.0mm and 2.0mm, 6 soorte filters met outomatiese skakelfunksies
Video stelsel	500W pixel hoë resolusie kamera
Vertoon skerm	Splinternuut 5 inch transflective LCD touch screen, the resolution is 1080 x 720
Bespeuringslimiet	The minimum detection limits at 1 – 500 dpm
Veiligheid	Veelvuldige veiligheidsbeskerming, geen toetse nie, geen bestraling nie, radiation levels at work are far below the international safety standards.and has no sample telemetry, automatic shut X light tube function. Standaard stralingsskerms, thickened wall alloy test instrument
Spesialiteit	Ore special edition analysis software, using intelligent one key test
Gerief van toepassing	Key intelligent matching the best curve that no need to select curve
Data-oordrag	Digitale multi-kanaal tegnologie, SPl data transmission, vinnige ontleding, die hoë telkoers; waterdigte mini USB, and can be connected with a desktop computer
Bedryfs-omringende humiditeit	≤90%
Operating environmental temperature	-20℃~+50℃
Instrument dimension	244mm ( Lengte ) x 90mm ( Breedte ) x 330mm ( Hoogte )
Instrument gewig	1.7 Kg
Intelligent warning signals Indicator system	Groen lig beteken krag aan, red flushing means testing and yellow flushing means the problems
Bykomstighede	Drie-militêre-beskermingsboks is kompressie, waterdig en skok absorpsie. Universele laaier en motorlaaier,4GSD memory card and card reader Twee litiumbatterye en laaier, PDA-bykomstighede. stralingsskerm. Opsionele bykomstighede: die groot battery, sitplek tipe toets ondersteuning, Bluetooth drukker, mil, handdruk masjien, and other options can to choosen…

5.Eksklusiewe bykomstighede

Militêre graad hoë sterkte beskermende boks het goeie vogbestande skokbestendige druk drie funksies, 'n noodsituasie kan as 'n reddingsinstrument gebruik word

'n Perdeskoenvormige battery:batterykapasiteit by 27000mAh wat toetstyd verleng 3 keer.en gebruik as die sitplekstent

Om drukdata op die perseel te verkry deur draagbare Bluetooth-drukkers

Vier in een motorlaaier kan laaitye in die veld verleng.



GA-205 Precious Metal Analyzer is designed for on-site composition identification, featuring small, lig, precise,rapid, beautiful, veilig, convenient, waterproof and long-standby time. Equipped with digital multi-channel technology, it greatly improves the detection limit and stability of the instrument, expanding the application fields.This product has passed strict testing and inspection, and all index are accorded with the related technological requirements, reaching the international advanced level.



6.Performance Advantage

01 Perfect performance as desktop

Small power integral end-window miniature -ray tube, large dimensional beryllium window Silicon Drift Detector (SDD the best detector in the world), and miniature digital signal multi-channel processor, greatly reduce the testing time and testing deviation, and improve the testing precision, requiring similar performance as the desktop.

02 Small & light body, easy for carry

Small body. Easy to carry.Convenient for wild work. Can operate on-site and in-situ analysis at anytime or anywhere

03 Rapid & nondestructive detection

1-2secs for rapid detection,More than 10secs for precise detection, whose results are similar to the results gotten in lab,No destruction to samples.

04 Detection of light element

Helium-charging system (opsioneel) greatly expands measurable range (analyze elements from Mg), satisfying the requirements of customers for light elements detection.

05 Direct testing

it can directly analyze on the surface of the analytes, without needing of preparing samples

06 Simple deviation calibration

Built-in intensify calibration method ensures simple deviation calibration caused by different geometry shapes and inhomogeneous structure density.

07 HD camera for convenient observation

Observation of testing position at any time.

08 Professional software for easy operation

it is equipped with professional alloy analysis software. Combining FP with EC software, it is easy for operation and acquiring wider application fields.

09 Faster data transmission

Built-in system, HD touch screen (resolusie 640*480), digital multi-channel technology, and SPI data transmission technology, effectively accelerate the data transmission and improve counting ability.

10 Veelvuldige veiligheidsbeskerming, caring for health

Automatically shut-down of X-ray light tube within 2 seconds with no sample in testing; the radiation level is far lower than the international safety standard; compliment away test safety cover.

11 Powerful battery & convenient charging

Compliment away two Lithium batteries (7800mAh), it can continuously work for 8 hours all together, lt is convenient for charging because of wide voltage AC charger and Onboard charger.

12 Multiple protections

Waterproof and dustproof function provide the ability of working under high temperature and humidity. lts body is manufactured with high strength military material, which is moistureproof, shockproof, and pressure resistant.

An Introduction to Precious Metals Analysis

Precious metals refer to the eight metal elements Au, Ag and Ru, Rh, Pd, Os, GA, Pt in Pt family. Most of these metal shave beautiful colors. They are normally unreactive as they have strong resistance to chemicals. They are usually made into jeweGAies or souvenirs and have wide industrial application.

GA-205 PLUS can test grades and purity of the precious metals, identify grades of gemstones and conduct routine physical, compositional and structural analysis of jeweGAies.

GA-205 plus tests precious metal fineness for gold, silwer, platinum, palladium, ens. in accordance with National Standard GB 11887 JeweGAy–Fineness of Precious Metal Aloys and Designation and GB/T 18043 Precious Metals JeweGAies Content Non-destructive Test Method X-ray Fluorescence Spectrometry.

Element	Intensity	Content
Au	0.484258	74.492227
Cu	0.196015	15.420389
In	0.122583	6.225294
Fe	0.090834	1.902314
Zn	0.080972	1.535448
Ag	0.012456	0.316642



Name of the precious metals jeweGAy	Types of jeweGAy	Content of metal elements	Type identifier
Au jeweGAy	18k gold	Au≥750‰	18K、G18K、G750、Au750
	Pure gold	Au≥990‰	Pure gold、G990、Au990
	Gold999	Au≥999‰	Gold999、G999、Au999
Ag jeweGAy	925 silwer	Ag≥925‰	S925、Ag925
	puresilver	Ag≥990‰	S990、Ag990
Pt jeweGAy	Pt900	Pt≥900‰	Pt900
	Pt950	Pt≥950‰	Pt950
	Pt990	Pt≥990‰	Pt990
Pd jeweGAy	Pd950	Pd≥950‰	Pd950
	Pd990	Pd≥990‰	Pd990
