Electrostatic discharge generator

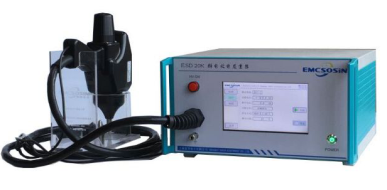

ESD 20K/30K Electrostatic discharge generator

Electrostatic discharge generator

ek.Product function characteristics

7 inch touch screen operation;
Support Chinese and English language, convenient for different users to use;
Built-in automatic detection program, automatically detect the environment and remind users;
Programmable operation to achieve one-click complete setting function;
Built-in IEC international standard grade parameters, maklik om te bedryf;
The discharge module can be replaced to meet different standard test requirements;
RS232, USB-koppelvlak, PC beheer werking.

Electrostatic discharge generator

Meet the following criteria	Product testing area
OVK 61000-4-2	Cell phone communication, information technology
GB 4706	Telecommunications, home appliances, lighting
IEC/EN 61326	Military equipment, aerospace
OVK 6060-1-2	Medical devices, semiconductor electronics
GB/T 17626.2	Radio and television, audio and video
ISO 14304	New energy power, instrumentation
ITU-T K.20	Railway engineering, new energy vehicles

II.Product use power requirements

Product use power requirements	Environmental requirements for product use
Insetspanning：AC220V (≥150W)	for indoor use
Frekwensie：50/60Hz	The altitude does not exceed 1000 meter
Phase number: single-phase 3-wire (L-N-PE)	The ambient temperature ranges from 15 ° C to 35 °C
电 Electrical voltage resolution：1V	relatiewe humiditeit 30%-60%
Output voltage waveform distortion ≤5%	Grounding resistance ≤ 2 O

III.Product design and manufacturing based on standards

l GB/T 17626.2 “Electromagnetic Compatibility Test and measurement technology Electrostatic discharge immunity Test”

l IEC61000-4-2: Testing and measurement techniques-Electrostatic discharge immunity test

Electrostatic discharge generator

IV.Product technical parameters

Product Model	ESD 20K ESD 30K
Output voltage	0.2~20kV±5%	0.2~30kV±5%
Operation mode	7.0 inch full color touch screen
Output voltage polarity	Positive, negative, alternating between positive and negative
Energy storage capacitance	150pf
Discharge resistance	330Ω±5%
Discharge current rise time	0.8ns±0.25%
The first peak current （±10%）	7.5A at 2kV, 15.0A at 4kV, 22.5A at 6kV, 30.0A at 8kV
The current value at 30ns is (±30%)）	4.0A at 2kV, 8.0A at 4kV, 12.0A at 6kV and 16.0A at 8kV
Current value at 60ns (±30%)	2.0A at 2kV, 4.0A at 4kV, 6.0A at 6kV, 8.0A at 8kV
Air discharge holding time	≥5s
Discharge mode	Contact discharge, air discharge
Discharge mode	Single discharge, continuous discharge
Snellermodus	Outomaties, handleiding, gun control, intelligent scanning
Werkmodus	IEC level mode, user mode, programming mode, voltage escalation mode
Discharge interval	0.05~9.99s
Discharge times	1~9999C
Equipment power supply	AC220V ± 10%, 50/60Hz
Omgewingstemperatuur	15℃～35℃
