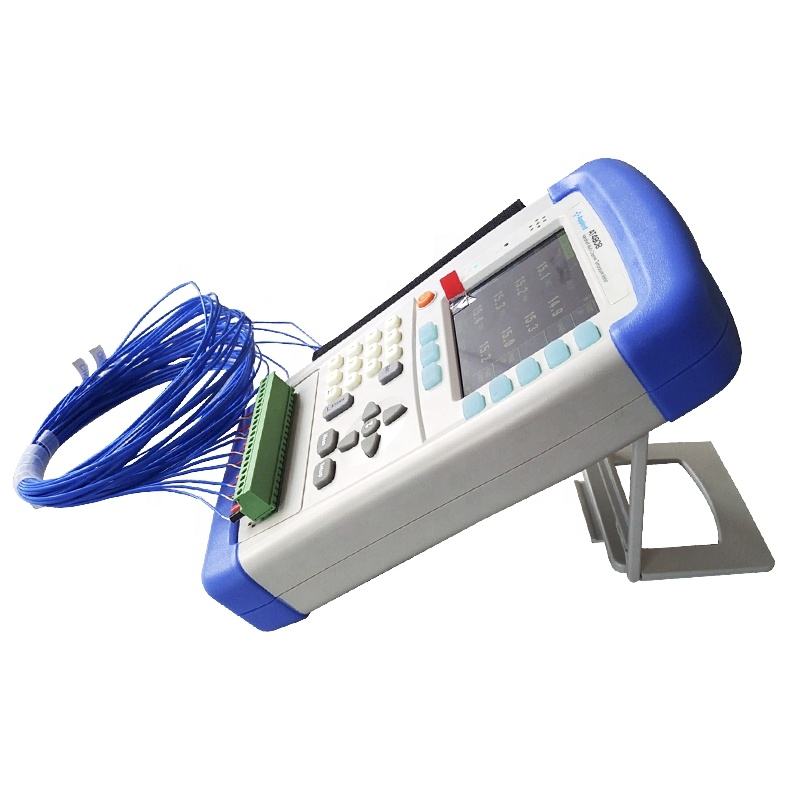

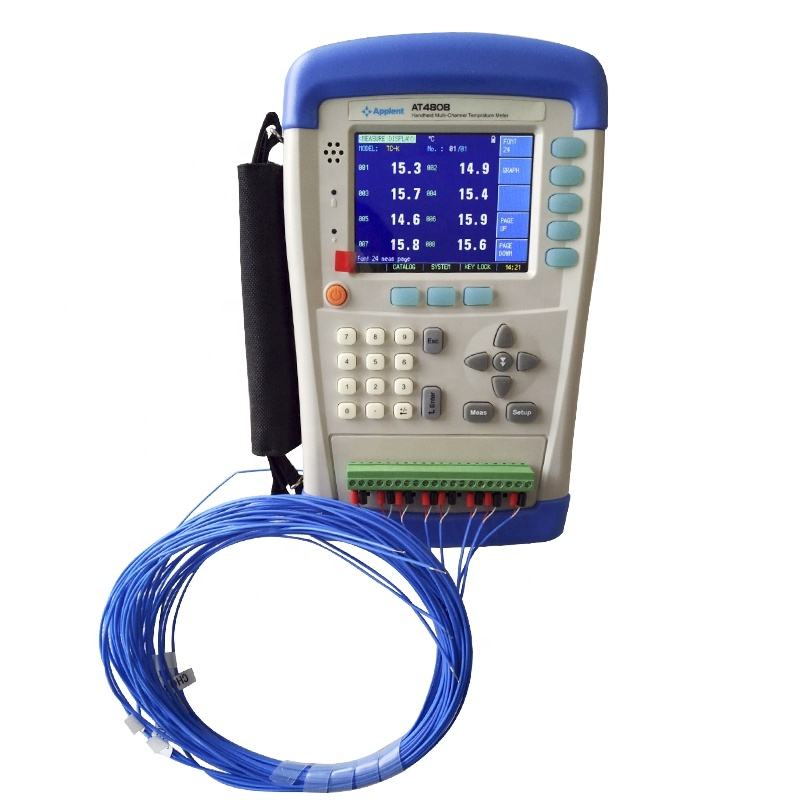

Anbai AT4808 Digital Thermometer AT4816 AT4824
- Beskrywing
- Ondersoek
Beskrywing
Digital Thermometer
Kort inleiding
AT48xx series handheld multi-channel temperature meter adopts high-performance ARM micro processor, can collect multi-channel temperature data simultaneously and response quickly. AT48xx series has the function of checking broken thermocouple, high/low beep function and communication transmission. 128 channels temperature data can be extended, compatible with various temperature sensors. Equipped with Mini-USB (virtual series port) interface to realize data acquisition, analysis and print through the standard computer software. Support USB disk storage, real-time sampling data storage. The users can adjust data for each channel independently.
Digital Thermometer
|
SPESIFIKASIES |
|||
|
AT4808 |
AT4816 |
AT4824 |
|
| Graduation |
Thermocouple:J/K/T/E/S/N/B/R |
||
| Basiese Akkuraatheid | 0.2℃ ± 2 syfers(not include thermocouple accuracy) | ||
| Reeks | -200°C~1300°C(varying depend on graduation) | ||
| Resolusie | 0.1°C | ||
| Channel | 8-channel
Can be expanded to 128 kanale |
16-channel
Can be expanded to 128 kanale |
24-channel
Can be expanded to 128 kanale |
| Spoed |
Medium: 500ms/channel, slow: 1s/channel |
||
| Regstelling |
Error correction for each channel |
||
| Vergelyker |
High & low beep. High & low value setting individually for each channel |
||
| Koppelvlak | U-disk interface, Mini-USB (virtual serial port) | ||
| Sagteware | ATS48xx data acquisition software | ||
| CJC | Akkuraatheid:0.5℃ | ||
| Ander | TFT-LCD True-color LCD display,broken thermocouple checking function | ||
| ALGEMENE KENMERKE | |||
| Kragtoevoer
(ATL909) |
Invoer: 100-240V~50/60Hz 0.35A Uitset: 9V 2A DC |
||
| Battery Grense |
8.4V, Li, 2200mA rechargeable battery |
||
| Charging time |
Single continuous charging time: Max 300Mins |
||
| Working Time |
≥8 hours |
||
| Grootte |
Outside (mm): 130.23 (Breedte)x210.76(Hoogte)x37.88 (Depth), 650g |
||
| BESTELLINGS INLIGTING | |||
| Bykomstighede | K thermocouple 8/16/24 teams(2m/team)
ATL909: DC power adaptor ATL202 Carrying Case ATL804: Lithium battery ATL105 Mini-USB communication cable ATS48xx data acquisition software |
||
